IR FLUORESCENT FINGERPRINT POWDERS
Reveal high contrast fingermarks

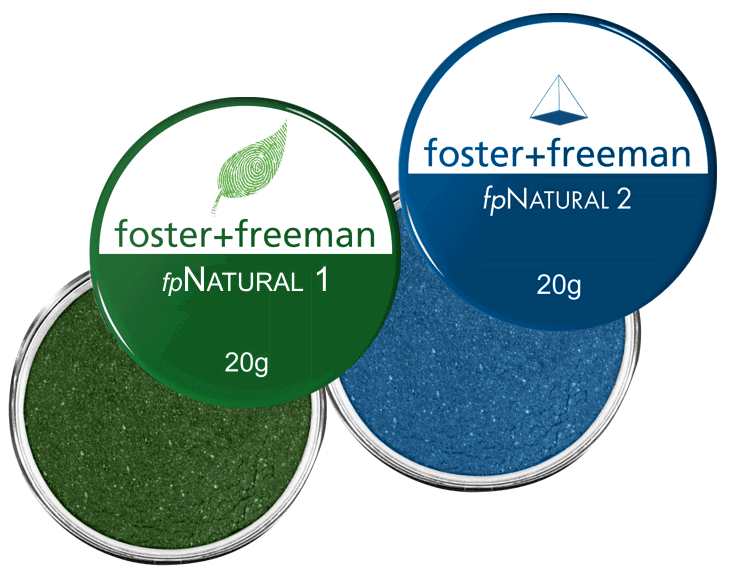

fpNatural® Powders
Multi-coloured and densely patterned backgrounds, reflective metal surfaces and substrates that fluoresce at the same wavelengths as common fluorescent fingerprint treatments, can prevent the successful imaging of fingerprints. However, when dusted with fpNatural® infrared fluorescent powders, interference can be removed to reveal high contrast prints.
Inspired by Nature
Exploiting the IR fluorescent properties of plants and minerals
When seeking materials that would fluoresce in the IR, we initially took inspiration from nature, testing a wide variety of minerals and plant based powders for suitability. Excellent results were achieved using a modified blend of cyanophyta and a bright blue mineral pigment known as Egyptian Blue.
fpNATURAL® 1, a plant based fluorescent powder
Cyanophyta or cyanobacteria is a phylum of bacteria that gains its name through its blue/green colour. Often referred to as blue-green algae, there are approximately 2000 species of cyanophyta, the perfect blend of which meets all the requirements to produce an ideal IR fingerprint powder:
+ Emits bright IR fluorescence under blue/red illumination
+ Rich in IR fluorescent phycocyanin and chlorophyll
+ Non-toxic, safe to use and handle, and easily applied with a zephyr brush
fpNATURAL® 2, a mineral pigment based fluorescent powder
Egyptian Blue, also known as calcium copper silicate or cuprorivaite, is best known for its use in ancient Egyptian artwork found on statues, tomb paintings and sarcophagi. A bright blue powder, when viewed in the visible spectrum, Egyptian Blue exhibits strong Near-Infrared fluorescence when illuminated with either Visible or Near-Infrared light. The fpNATURAL® 2 blend of Egyptian Blue offers unique advantages to the fingerprint examiner:
+ Emits fluorescence under Near-IR illumination
+ Produces a significantly high quantum yield in excess of 10%
+ Ideally suited to covert applications (can be stimulated in the N-IR)
Illumination & Imaging
Entry-level and advanced IR Imaging Kits for the crime scene and forensic laboratory.
fpNATURAL®1 Imaging Kits

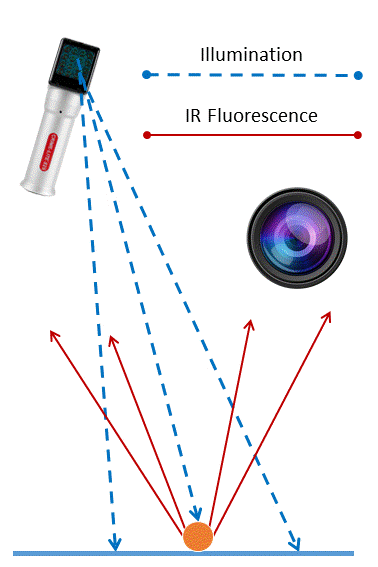

fpNatural 1 is stimulated using ‘visible’ illumination in the blue or red wavebands and emits ‘invisible’ infrared fluorescence.
STANDARD IMAGING KIT - DUAL WAVELENGTH LIGHT SOURCE AND FILTER
Kit includes:
- Crime-lite 42S Blue/Red light source
- AC mains power adaptor
- 715nm optical viewing filter
- Accessories
Order Code: QCL/FP1/L/S/KIT
ADVANCED IMAGING KIT - CRIME-LITE 82S LIGHT SOURCES AND FILTER
Kit includes:
- Crime-lite 82S Blue
- Crime-lite 82S Red
- AC mains power adaptor
- 715nm optical viewing filter
- 780nm optical viewing filter
- Accessories
Order Code: QCL/FP1/L/A/KIT
fpNATURAL®2 Imaging Kits
fpNatural 2 is stimulated by ‘invisible’ Near-IR illumination and emits ‘invisible’ IR fluorescence.
STANDARD IMAGING KIT - CRIME-LITE 82S 780nm LIGHT SOURCE AND FILTER
Kit includes:
- Crime-lite 82S 780nm
- AC mains power adaptor
- 850nm sharp cut filter
- Accessories
Order Code: QCL/FP2/L/S/KIT
ADVANCED IMAGING KIT - CRIME-LITE 82S LIGHT SOURCES AND FILTER
Kit includes:
- Crime-lite 82S 780nm
- Crime-lite 82S Red
- AC mains power adaptor
- 850nm sharp cut filter
- 900nm sharp cut filter
- Accessories
